How to Design Functional Fitness Centers in AutoCAD + (Free DWG Download)

Designing a modern fitness center or commercial gym is far more complex than simply placing a few treadmills in a room. Architects must account for equipment footprints, “live load” safety zones, circulation paths, and electrical requirements for each machine. Drawing complex elliptical shapes or weight benches from scratch is time-consuming and often results in inaccurate scaling.

Furthermore, if you use a generic rectangle to represent a treadmill, you might find during construction that the actual machine blocks a doorway or violates safety codes. Efficiency in Phase 2 (Design Development) relies on using accurate, pre-drawn blocks that represent real-world equipment dimensions and their required operational clearances.

Technical Guide: Best Practices for Gym Layouts

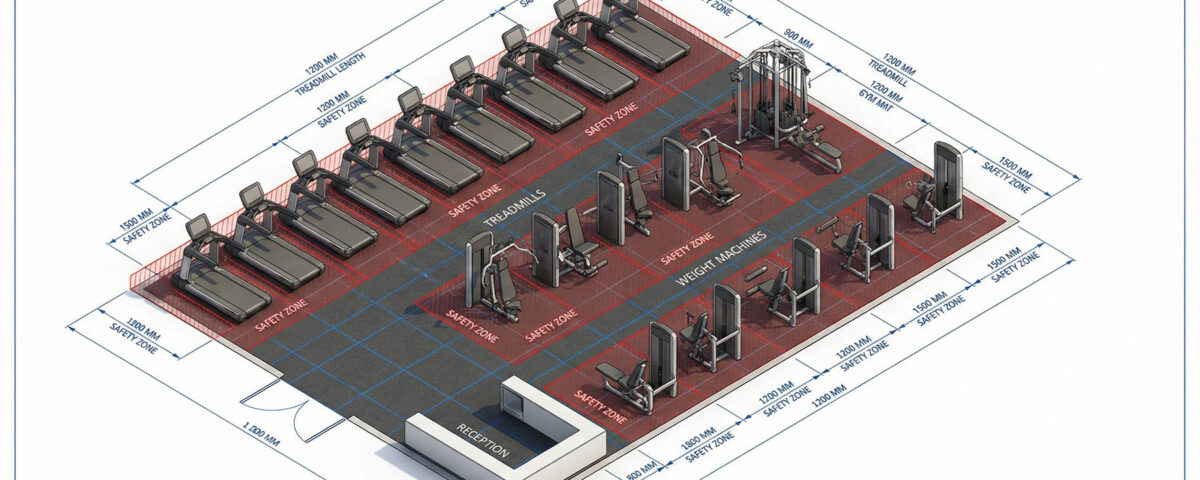

Managing “Safety Zones” is just as important as the equipment itself:

• Treadmill Clearance: A treadmill typically requires a clear zone of at least 6 feet (2 meters) behind it for safety in case a user falls. Use blocks that include this clearance zone (on a non-plot layer) to prevent overcrowding.
• Flow & Electrical: Group cardio equipment that requires power (treadmills, ellipticals) near floor boxes or walls. Ensure your blocks align with the Electrical Plan (E3) to avoid tripping hazards from cables across walkways.

For standards on fitness facility design, refer to ACSM (American College of Sports Medicine) Health/Fitness Facility Standards.

Expand Your Public Space Library

Gyms need support spaces. Complete your design with:

• Locker Room Seating (D8).
• Bathroom Fixtures (C6) for showers.

Watch: Video Guide to Drafting Standards

Watch this video to learn more about drafting standards for architectural drawings and how to efficiently integrate these blocks and patterns into your daily workflow.

Download the Gym Equipment Starter Pack (Free)

To help you work faster, we have created a professional AutoCAD Gym & Fitness Pack. It includes Treadmills, Ellipticals, and Weight Benches in plan and elevation. It is fully layered, purgable, and ready to use.

[Image: Preview of the Gym Equipment blocks]
